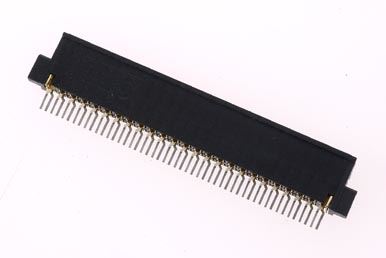

CF 50PIN Female Connector, Offset: 0.3mm

NOTE
Material / Connector :
  1. Housing:HTN, UL94V-0 related. Black
  2. Contact / terminal: 0.10mm thick Phosphor Bronze.
  3. Plating: Gold plated on contact touch area.
                   Solder tail: 100u" Sn

Characteristic:
  1. Compatible with CFA Standard.
  2. Temperature: -20°C ~ +85°C degrees.

Mechanical Spec. :
  1. Contact Retention Force: 4.9N Min (per circuit)
  2. Mating Force: 28.8N Max. (total)
  3. Un-mating Force:4.9N Min (total)

Electrical Spec.:
  1. Current:.0.5Amp Max.
  2. Voltage: 100VAC Max.
  3. Contact resistance: 40m ohm max.
  4. Dielectric Withstanding Voltage : 500VAC(RMS)
  5. Insulation Resistance : 1000M ohm min.
