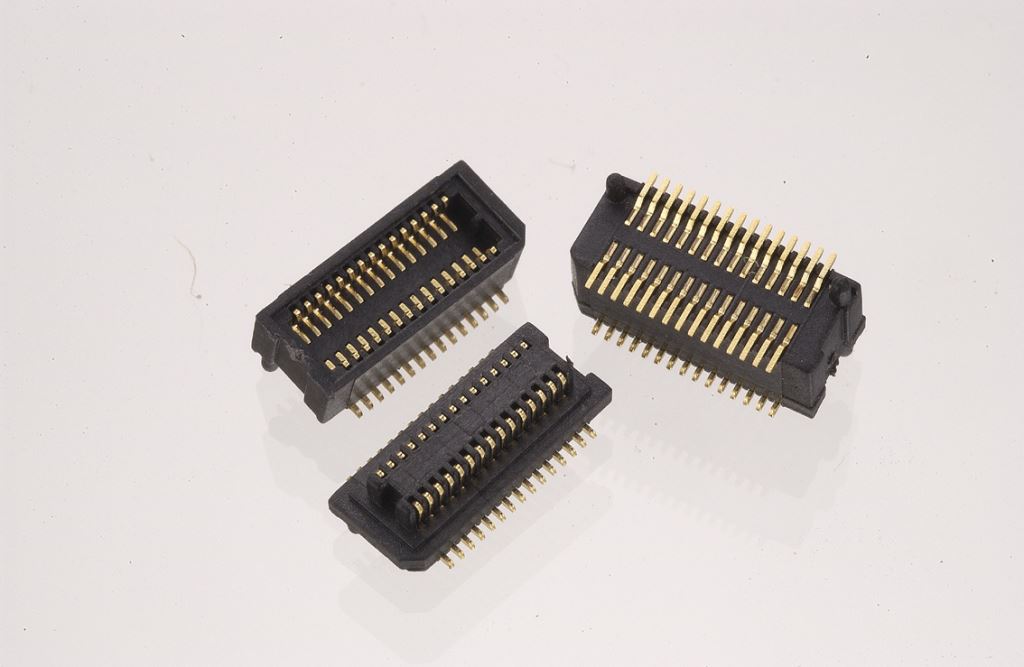

10+Gbps, 0.8mm Pitch B-To-B Connector, H:6.0mm

Model：ER08BTB-H60
0.8mm Pitch Board-To-Board Connector
Female + Male height = 6.0mm
Available: 10(2*5)~100(2*50) PIN

The ICR(Loss-to-Crosstalk Ratio) with 5-aggressor differential FEXT(Far End Crosstalk) meets IEEE802.3ap for 10Gbps with plenty of margins.
File Download

Product Introduction

NOTE
A. Material:
1. Housing : Nylon-9T Halogen Free, UL94V-0, Black
2. Contact : Copper Alloy
B.Plating: Gold plating
C.Temperature: -55° to 125°
D.Electrical:
1. Voltage : 100V.
2. Current : 0.5A.
3. Contact Resistance : 40m Ω max.
4. Dielectric Withstanding Voltage : 500V AC / 1 min.
5. Insulation Resistance : 100M Ω min.
E.Available Pins : 10~100 Contacts
F. Signal integrity features:
1. Insertion Loss-to-Crosstalk Ratio(ICR)
The ICR(Loss-to-Crosstalk Ratio) with 5-aggressor differential
FEXT(Far End Crosstalk) meets IEEE802.3ap for 10Gbps with
plenty of margins.
2. Differential Impedance:
The differentail impedance is 85Ω at 35 ps rise time.
(20% ~ 80%)
